  PVDF Tube

 Product Summary:

saferlon® PVDF Tube name:PVDF, Polyvinylidene Fluoridecolor: Character (slightly transparent wh


 Contact us:


ADD:13/F,Baolong Building B,Longguan West Rd.,Longhua District,Shenzhen
TEL1:+86-755-28113160
TEL2:+86-13421367051
FAX:+86-755-28018885
E-MAIL:sales@quandaplastic.com

Product Information

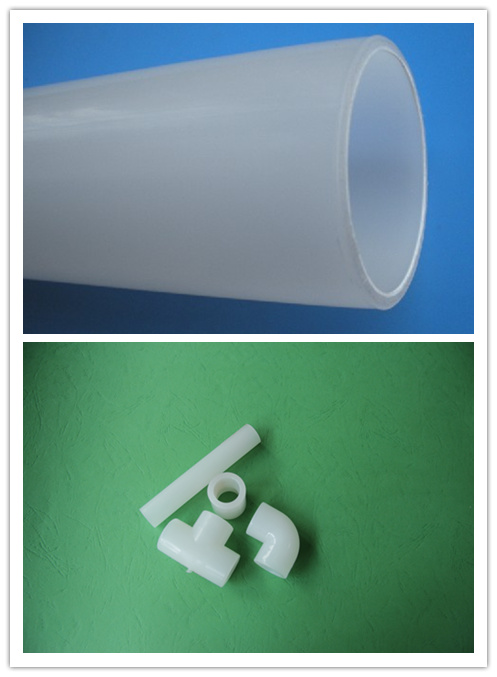

saferlon® PVDF Tube

name:PVDF, Polyvinylidene Fluoride

color: Character (slightly transparent white)

1 Introduction

saferlon ® PVDF tube, the PVDF resin is extruded into a high temperature pipe, a relatively pure polymer which does not contain UV stabilizers, heat stabilizers, emollients, lubricants, or flame retardants and other additives. PVDF polyvinylidene fluoride has excellent chemical resistance, aging resistance, workability, resistance to fatigue and creep resistance compared with PTFE, PVDF has a higher bearing capacity and rigidity, but the smoothness and less electrical insulation. PVDF can be used continuously over a temperature range of -60 ℃ -150 ℃.

2 Features

♦ high stiffness and high strength

♦ toughness, wear resistance, excellent creep resistance

♦ good chemical stability, good corrosion resistance

♦ aging resistance, UV resistance

♦ good mechanical properties, easy welding, thermoforming and other machining

♦ insulation resistance, high dielectric strength, but low flammability

♦ oxide, bromide and energy rays such as β and γ rays can be stable

♦ easy welding, thermoforming and other machining

3. Uses

♦ the best materials of petrochemical equipment fluid handling system as a whole or lined pumps, valves, pipes, tanks, pickling tanks and heat exchangers

♦ meet flame retardant and anti-corrosion, high purity chemicals are widely used in the semiconductor industry to store and transport means


♦ LCD electronics industry and other related devices, the fields of chemistry equipment, food processing machinery, etc.

♦ metal reactor, metal anti-corrosion chemical containers lined

♦ environmental protection industry, glass-lined steel reactor for enamel reactor crack plastic liner for pipe anti-corrosion lining

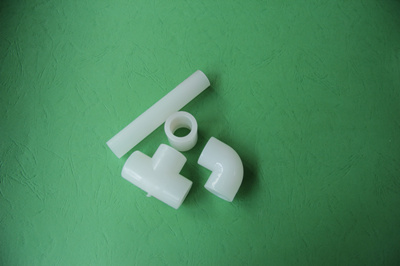

♦ Other pump parts, rotary disc valves, flow stop valves, extraction centrifuge, cog, pipe connections, rails, etc.


4 Specification

PVDF Pipe Specifications

Specification

daOD

Air hose

LINER

SDR33

PN10S-10

SDR21

PN16S-10

Φmm

Inch

Wall thickness smm

Gewicht Weight

(kg/m

Wall thickness smm

Gewicht Weight

(kg/m

smm

Gewicht Weight

 (kg/m

20

1/2

1.90

0.21

25

3/4

1.90

0.27

32

1

2.40

0.44

40

1+1/4

2.40

0.55

50

1+1/2

3.00

0.85

63

2

2.50

0.93

2.50

0.93

3.00

1.09

75

2+1/2

1.11

3.60

1.55

90

3

2.80

1.48

4.30

2.22

110

4

3.00

2.49

3.40

2.20

5.30

3.32

125

4+1/2

3.90

2.84

6.00

4.24

140

5

3.00

2.49

4.30

3.52

6.70

5.31

160

6

3.00

2.85

4.90

4.54

7.70

6.96

180

7

5.50

5.74

8.60

8.74

200

8

3.00

3.58

6.20

7.19

9.60

10.74

225

9

6.90

8.95

10.80

13.67

250

10

3.00

4.48

7.70

11.90

11.90

16.73

280

11

8.60

13.86

13.40

21.11

315

12

4.00

7.47

9.70

17.55

355

14

4.00

8.43

10.90

22.00

400

16

5.00

11.81

12.30

28.03

PVDF Pipe Specifications

OD20*ID1.9*L4000,L Customizable

OD25*ID1.9*L4000,L Customizable

OD32*ID2.4*L4000,L Customizable

OD40*ID2.4*L4000,L Customizable

OD50*ID3*L4000,L Customizable

OD63*ID3*L4000,L Customizable

OD75*ID3.6*L4000,L Customizable

OD90*ID4.3*L5000,L Customizable

OD110*ID5.3*L5000,L Customizable

OD125*ID6*L5000,L Customizable

OD140*ID6.7*L5000,L Customizable

OD160*ID7.7*L5000,L Customizable

OD180*ID8.6*L5000,L Customizable

OD200*ID9.6*L5000,L Customizable

OD225*ID10.8*L5000,L Customizable

OD250*ID11.9*L5000,L Customizable

OD280*ID13.4*L5000,L Customizable
