PVDF Sheet

 Product Summary:

saferlon® PVDF sheet NAME:PVDF, Polyvinylidene FluorideColor: Natural (slightly transparent whi

 Contact us:

ADD:13/F,Baolong Building B,Longguan West Rd.,Longhua District,Shenzhen

Product Information

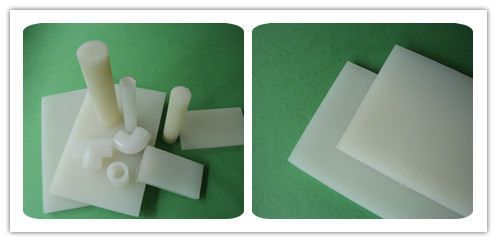

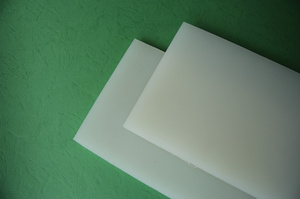

saferlon® PVDF sheet

NAMEPVDF, Polyvinylidene Fluoride

Color: Natural (slightly transparent white)

1 Introduction

saferlon ® polyvinylidene fluoride sheet, high temperature of the PVDF resin is extruded into a sheet, is a relatively pure polymer which does not contain UV stabilizers, heat stabilizers, emollients, lubricants, or flame retardants and other additives. PVDF polyvinylidene fluoride has excellent chemical resistance, aging resistance, workability, resistance to fatigue and creep resistance compared with PTFE, PVDF has a higher bearing capacity and rigidity, but the smoothness and less electrical insulation. PVDF can be used continuously over a temperature range of -60 ℃ -150 ℃.

2 Features

♦ high stiffness and high strength

♦ toughness, wear resistance, excellent creep resistance

♦ good chemical stability, good corrosion resistance

♦ aging resistance, UV resistance

♦ good mechanical properties, easy welding, thermoforming and other machining

♦ insulation resistance, high dielectric strength, but low flammability

♦ oxide, bromide and energy rays such as β and γ rays can be stable

♦ easy welding, thermoforming and other machining

3. Uses

♦ the best materials of petrochemical equipment fluid handling system as a whole or lined pumps, valves, pipes, tanks, pickling tanks and heat exchangers

♦ meet flame retardant and anti-corrosion, high purity chemicals are widely used in the semiconductor industry to store and transport means

♦ LCD electronics industry and other related devices, the fields of chemistry equipment, food processing machinery, etc.

♦ metal reactor, metal anti-corrosion chemical containers lined

♦ environmental protection industry, glass-lined steel reactor for enamel reactor crack plastic liner for pipe anti-corrosion lining

♦ Other pump parts, rotary disc valves, flow stop valves, extraction centrifuge, cog, pipe connections, rails, etc.

4 Specification

PVDF board specifications

φ diameter, L is the length. The formula bar:

T1*W1000*L2000,T、L Customizable

T2*W1000*L2000,T、L Customizable

T3*W1000*L2000,T、L Customizable

T4*W1000*L2000,T、L Customizable

T5*W1000*L2000,T、L Customizable

T6*W1000*L2000,T、L Customizable

T10*W1000*L2000,T、L Customizable

T12*W1000*L2000,T、L Customizable

T8*W120*T2040,T Customizable

T12*W1020*T2040,T Customizable

T15*W1020*T2040,T Customizable

T20*W1020*T2040,T Customizable

T25*W1020*T2040,T Customizable

T30*W1020*T2040,T Customizable

T35*W1020*T2040,T Customizable

T40*W1020*T2040,T Customizable

T45*W1020*T2040,T Customizable

T50*W1020*T2040,T Customizable
