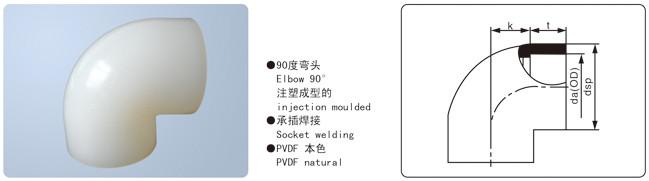

规格尺寸表
Size | da(OD) mm | dsp mm | t mm | k mm | p bar | Weight |
16 | 16 | 24 | 14.50 | 10 | 20 | 0.02 |
20 | 20 | 29 | 16.00 | 15 | 20 | 0.04 |
25 | 25 | 35 | 18.00 | 15 | 20 | 0.07 |
32 | 32 | 43 | 19.50 | 21 | 20 | 0.10 |
40 | 40 | 52 | 21.50 | 25 | 20 | 0.16 |
50 | 50 | 64 | 24.50 | 30 | 20 | 0.27 |
63 | 63 | 81 | 28.00 | 35 | 20 | 0.48 |
75 | 75 | 92 | 32.50 | 39 | 20 | 0.59 |
90 | 90 | 113 | 35.50 | 44 | 20 | 1.08 |
110 | 110 | 133 | 41.50 | 53 | 20 | 1.57 |
