saferlon® PTFE RodNAME: PTFE (polytetrafluoroethylene)COLOR: White 1 Introduction sa

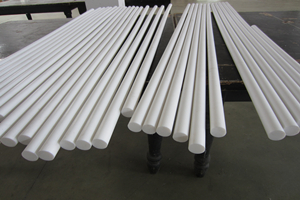

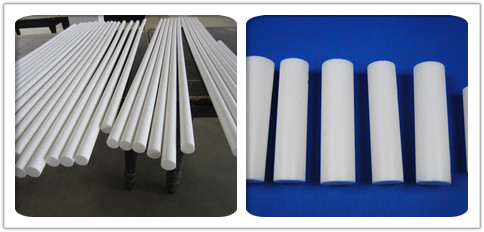

saferlon® PTFE Rod
NAME: PTFE (polytetrafluoroethylene)
COLOR: White
1 Introduction
saferlon ® PTFE rod has two kinds. Optional 4-9mm diameter rod dispersion polymerization PTFE resin paste extrusion made; stick optional suspension PTFE resin diameter of 10-50mm diameter ram extrusion made; diameter of 50mm or more rods Trail molding.
Fluorine plastic, PTFE is widely used, is the number of fluorine plastic family the largest and most important species. Teflon demonstrated a remarkable chemical resistance, essentially resistant to most chemicals. With good self-lubricating properties, is an ideal material for the manufacture of corrosion-resistant gaskets and seals.
2 Features
♦ superior corrosion resistance, from some fluoride and alkaline liquid metal in addition to
♦ flame retardant properties, limiting oxygen index of less than 90
♦ low coefficient of friction
♦ not sticky, self-lubricating properties
♦ high temperature and low temperature, temperature range of -200 ~ 260 ℃
♦ excellent electrical insulation properties
♦ resistance to weathering performance
♦ low permeability, good gas barrier properties
♦ good physiological compatibility and antithrombotic
3 main technical indicators
Project Name | Unit | Index |
Apparent density | g/cm3 | 2.10-2.25 |
Tensile strength ≥ | MPa | 30 |
Elongation ≥ | % | 250 |
Project Name | Unit | Index |
| Apparent density | g/cm3 | 2.10—2.30 |
Tensile strength ≥ | MPa | 14.0 |
Elongation ≥ | % | 140 |
4 Use
l corrosion aspects, for the manufacture of a variety of chemical containers and parts, such as all the tanks, reactors, equipment lining, valves, pumps, fittings, filter materials, separation materials, pipes and other corrosive fluids and corrosive media contact products. l wear resistance, the movement for the manufacture of sealing rings, piston rings, gaskets, valve seats, bearings, bearings, sliders and rails and so on. l aspects of insulating materials used in the manufacture of various high temperature resistance, electrical insulation and high-frequency arc-resistant products, such as high-frequency cables, moisture-resistant cables, capacitors, coils, wire insulation jacket, etc. l medical materials, such as artificial blood vessels, artificial hearts, artificial esophagus, artificial intraperitoneal, artificial heart-lung machine, all the catheter tube and the cannula. l non-stick materials for a variety of products such as non-stick coating, food processing machines, such as anti-sticking roll. 5 Specification |
PTFE Bar Specifications
Diameter（mm）×Length(mm) | Custom made |
Φ4*L1000 | L Customizable |
φ5*L1000 | L Customizable |
φ6*L1000 | L Customizable |
φ7*L1000 | L Customizable |
φ8*L1000 | L Customizable |
φ10*L1000 | L Customizable |
φ12*L1000 | L Customizable |
φ15*L1000 | L Customizable |
φ18*L1000 | L Customizable |
φ20*L1000 | L Customizable |
φ25*L1000 | L Customizable |
φ30*L1000 | L Customizable |
φ35*L1000 | L Customizable |
φ40*L1000 | L Customizable |
φ45*L1000 | L Customizable |
φ50*L1000 | L Customizable |
φ55*L1000 | L Customizable |
φ60*L1000 | L Customizable |
φ65*L1000 | L Customizable |
φ80*L1000 | L Customizable |
φ85*L1000 | L Customizable |
Φ90*L1000 | L Customizable |
Φ95*L1000 | L Customizable |
Diameter（mm）×Length(mm) | Custom made |
φ100*L200 | L Can not customize |
φ110*L200 | L Can not customize |
φ120*L200 | L Can not customize |
φ130*L200 | L Can not customize |
φ140*L200 | L Can not customize |
φ150*L200 | L Can not customize |
φ160*L200 | L Can not customize |
φ170*L200 | L Can not customize |
φ180*L200 | L Can not customize |
Φ200*L200 | L Can not customize |
Φ210*L200 | L Can not customize |
Φ220*L200 | L Can not customize |
Φ230*L200 | L Can not customize |
Φ240*L200 | L Can not customize |
Φ250*L200 | L Can not customize |
Φ260*L200 | L Can not customize |
Φ280*L200 | L Can not customize |
Φ300*L200 | L Can not customize |
Φ320*L200 | L Can not customize |
Φ330*L200 | L Can not customize |
Φ350*L200 | L Can not customize |
Molded |
φ100*L200 |
φ110*L200 |
φ120*L200 |
φ130*L200 |
φ140*L200 |
φ150*L200 |
φ160*L200 |
φ170*L200 |
φ180*L200 |
φ200*L200 |
φ210*L200 |
φ220*L200 |
φ230*L200 |
φ240*L200 |
φ250*L2000 |
φ260*L200 |
φ280*L200 |
φ300*L200 |
φ320*L200 |
φ330*L200 |
φ350*L200 |
