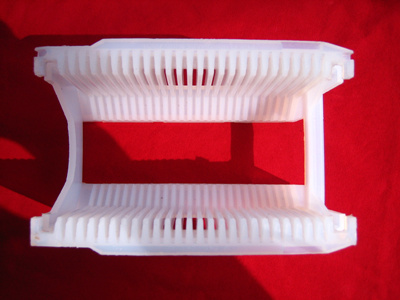

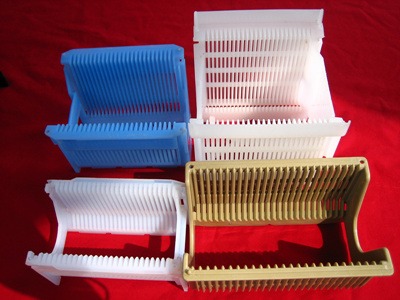

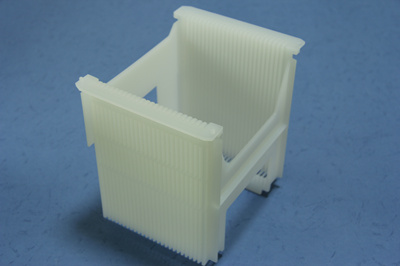

saferlon® PVDF solar wafer carrier baskets
Name: Wafer carrier, PVDF Basket
Color: White
Material: PVDF
1 Introduction
Race Freon ®, saferlon ® PVDF PVDF baskets with a new raw material, injection molding and special processing technology produced. PVDF wafer basket as cleaning tools for LSI manufacturing process. In order to meet the needs of the solar cell industry to develop a series of solar cell wafers carrier (basket) and accessories for loading 103 × 103 (mm), 125 × 125 (mm), 150 × 150 (mm), 156 × 156 (mm) square four sizes of silicon solar cells can be used for mechanical and manual cleaning and with a guard bar. The product has a higher rigidity and strength and precise dimensions and strict weight below 150 ℃ acid, the alkaline cleaning solution used for a long time will not be deformed, and the non-polluting cleaning liquid, the wafer is not loaded scratched silicon, silicon solar cells to meet the requirements of the production process.
2 Features
♦ high temperature resistance, high temperature 150 degrees to meet the long-term use
♦ oxidation resistance, weather resistance, irradiation performance
♦ good corrosion resistance can be NaOH in less than 150 ℃, HC1 solution, HF solution for cleaning the wafer, the conversion
♦ Long-term use of deformation, do not pollute the silicon
♦ good antistatic properties
3. Uses
Meet the needs of the solar cell industry, used in the wafer production lines and equipment cleaning process.
4 Specification
Specification ( Unit:mm ) | 103×103 | 125×125 | 150×150 | 155×155 |
Capacity( Unit:Piece ) | 25 | 25 | 25 | 25 |
D1 Size,( Unit:mm ) | 14.6 | 14.6 | 14.6 | 14.6 |
Slot pitch ( Unit:mm ) | 4.76 | 4.76 | 4.76 | 4.76 |
Slot narrowest distance( Unit:mm ) | 1.52 | 1.52 | 1.52 | 1.52 |
Shape Length( Unit:mm ) | 143.5 | 143.5 | 144 | 144 |
The total width of the shape( Unit:mm ) | 128 | 152 | 179 | 185 |
Total height form factor( Unit:mm ) | 123 | 149 | 178 | 184 |
